MPI Manual Probe Systems

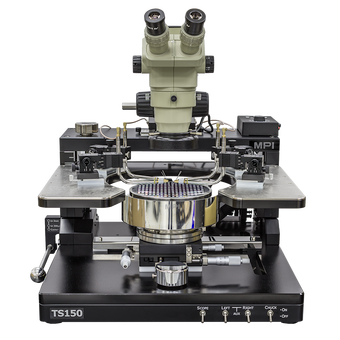

MPI TS150, TS200 & TS300 manual probe systems are open, easy to use and cost effective yet highly accurate. These systems are designed for precision analysis of substrates and wafers up to 150, 200 and 300mm.

They may be configured to support a wide variety of applications such as Failure Analysis, Design Validation/IC Engineering, Wafer Level Reliability, MEMS, High Power, Device Characterization, MEMS and Signal Integity as well.

The MPI TS150–THZ and MPI TS200-HP probe systemsare specifically designed for on-wafer high power device characterization testing up to 10 kV and 600A. Dedicated chuck designs, connectors and cables are engineered to achieve low contact resistance measurements of power semiconductor under wide range of temperatures.

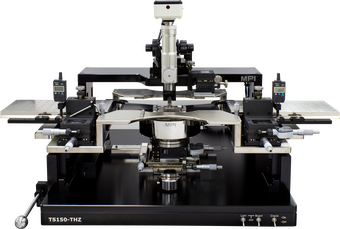

MPI TS150-THZ engineering probe system is a dedicated, cost effective, manual probe system designed especially for precision analysis of substrates and 150 mm wafers in the sub THz range. The system is extremely stable, with a large probe platen, and a low-profile design.

Each of these essential elements are required to support a wide variety of RF and mmW applications such as broadband up to 220 GHz, banded solutions up to 1.1THz, load-pull and RF noise.

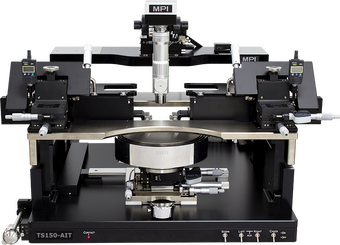

TS150-AIT and TS200-THZ probe systems expand MPI one-of-a-kind system solutions for emerging THz applications by adding active impedance tuner integrations on the same probe stations.These two systems are the industry's first explicitly designed 150mm and 200mm probe systems providing accurate tests for the combination of requirements for mm-wave, THz and automated impedance tuner applications with best possible measurement directivity.

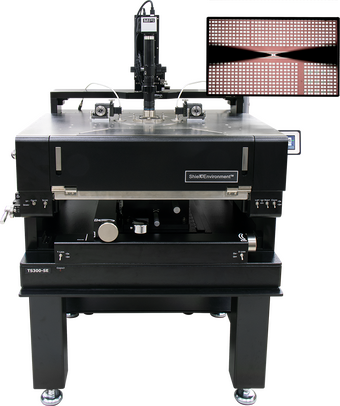

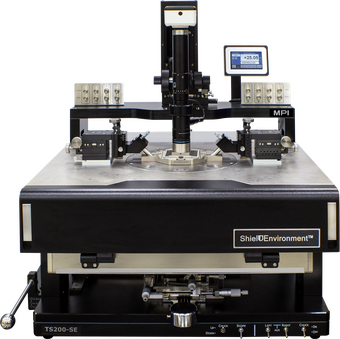

The MPI TS200-SE and TS300-SE probe systems incorporates ShieldEnvironment™, providing optimal EMI shielding which allows ultra-low noise device on-wafer measurements for mainly for Device Characterization and Modeling applications.

The modular design concept of all MPI manual probe systems allows a unique upgrade path towards reduced cost of ownership.

TS150, TS200 & TS300

MPI TS150, TS200 & TS300 - Standard Open Systems


MPI TS150-THZ Probe System

TS150-AIT & TS200-THZ

MPI TS150-AIT & TS200-THZ Probe Systems


MPI TS200-SE Probe System


MPI TS300-SE Probe System
